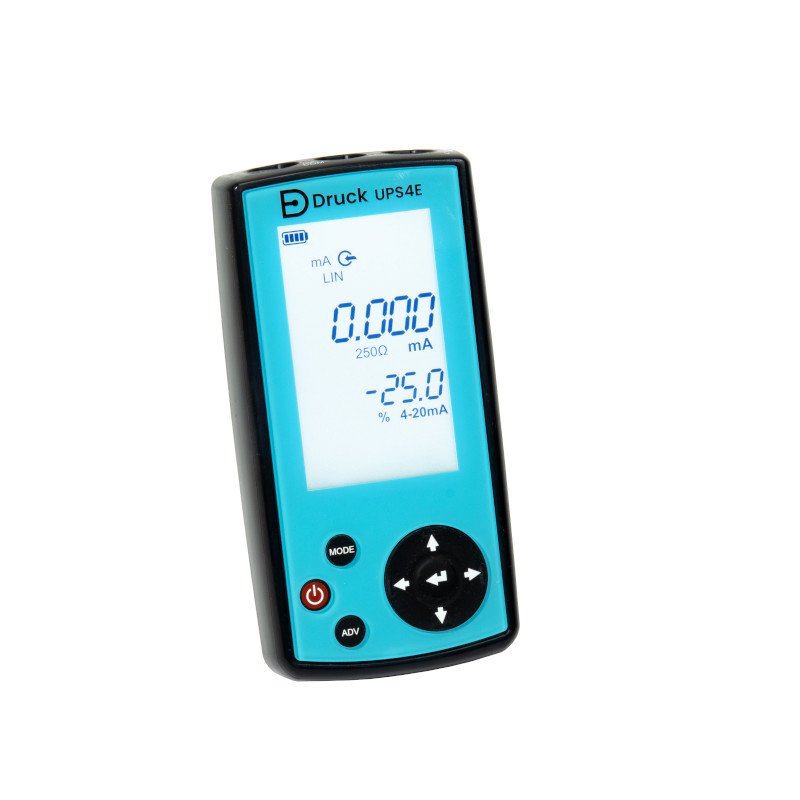

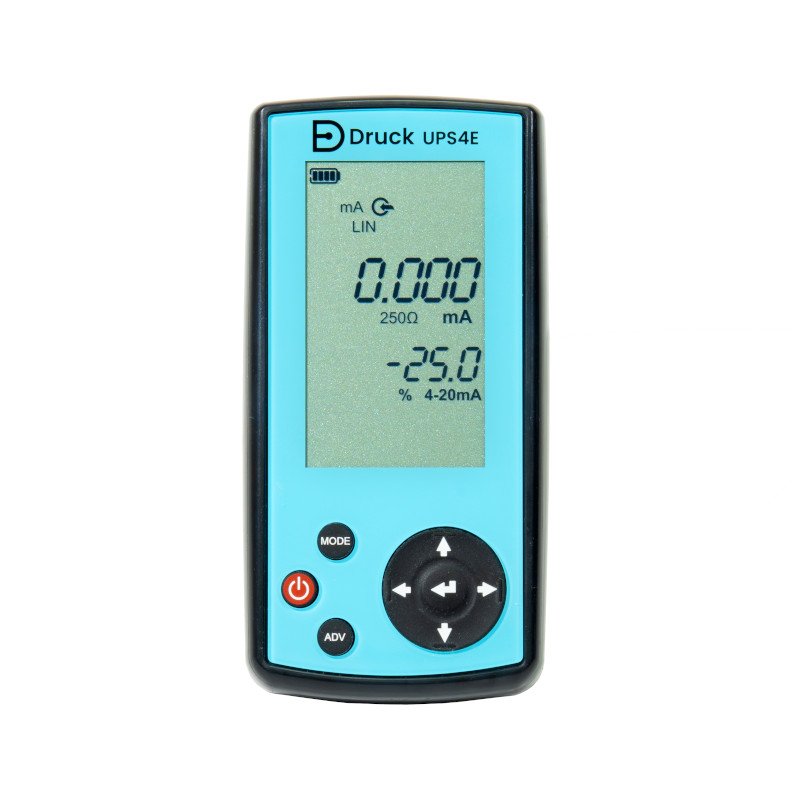

Druck UPS4E Loop Calibrator

by Druck

NEW PRODUCT!!

Druck is back in the loop! The UPS4E is engineered to be a necessary tool for loop testing, excelling at powering process control mA loops and mA devices. Ideal for instrument maintenance, it features an easy-to-read display and user-friendly, time-saving functions such as step, span, and valve check.

Continuing the legacy of the beloved UPS-II and UPS-III models, and with a market leading accuracy of 0.01% of reading, this rugged and ultra-compact device is designed for one-handed operation, making it incredibly convenient for fieldwork. Its small size allows it to fit comfortably in the top pocket of an overall.

Features
• Measure or source 0 to 24 mA
• Accuracy 0.01% of reading+1 count
• Dual mA and % readout, linear or flow
• Step, span check, valve check, ramp
• 30 VDC measurement and continuity check
• 100,000 datalog points
• In built 250 Ω resistor for supporting HART operation
• 24 V DC loop power with mA measure or source mode
• Auto shutdown to conserve battery life
• 4x AA batteries

Services:

For Sale | For Calibration

Resources:

Datasheet – Druck UPS4E Loop Calibrator
