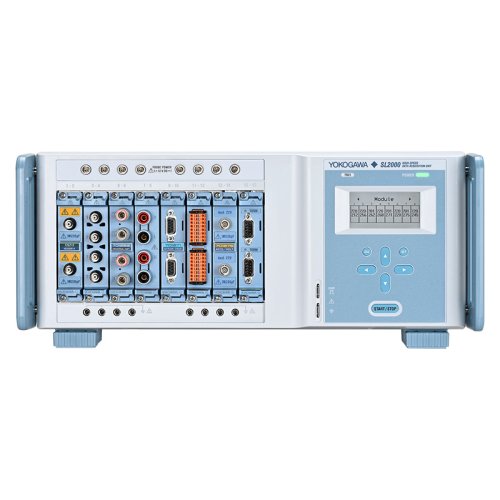

Yokogawa SL2000 High-Speed Data Acquisition Unit

by Yokogawa UK Ltd

The SL2000 high-speed data acquisition unit is an isolated oscilloscope/high-speed DAQ for embedded systems. With just one SL2000 unit, you can simultaneously record isolated analog signals from low voltage to 1000V, digital signals, encoder signals, CAN/CAN FD/LIN/SENT communication signals from in-vehicle networks, and NVH signals such as vibration, strain, and temperature. The same plug-in modules as the DL950 and DL350 can be used.

Up to 200 MS/s
Isolated 1000 V input, up to 7000 V input with differential probe
Up to 8 G point memory
Up to 160 CH* (5 units connected and synchronized) / Up to 640 channels when using the 720221 16 channel module
10 Gbps PC streaming
Real-time calculation/power calculation/motor dq analysis

There are two modes, "Scope Mode" and "Memory Recorder Mode", to suit the environment and purpose.

Scope Mode
This is an operation mode suitable for measuring high-speed signals and repetitive waveforms. Like an oscilloscope, the waveform is recorded each time a trigger occurs according to the set time axis setting (T/Div) and number of sampling points. The measurement range is displayed in scale units (V/Div).

Memory Recorder Mode
This is an operation mode suitable for measuring continuous waveforms over long periods of time. Like a data logger or recorder, it performs one-shot measurements with predefined measurement conditions, and records input signals by setting the sampling interval and recording time. The measurement range is displayed relative to the full width (upper and lower limits).
